Real-Time Driver Model for Xenomai, driver API header. More...

Include dependency graph for driver.h:

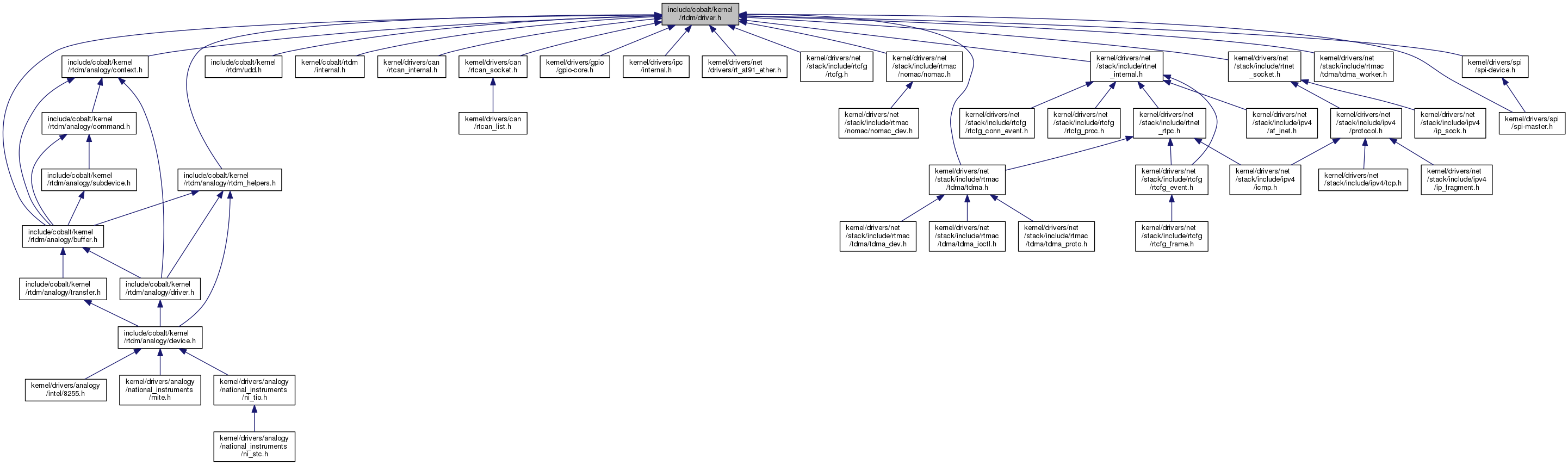

This graph shows which files directly or indirectly include this file:

Data Structures
struct	rtdm_dev_context
	Device context. More...

struct	rtdm_sm_ops
	RTDM state management handlers. More...

struct	rtdm_driver
	RTDM driver. More...

struct	rtdm_device
	RTDM device. More...

Macros
#define	RTDM_MAX_MINOR 1024
	Maximum number of named devices per driver. More...

#define	cobalt_atomic_enter(__context)
	Enter atomic section (dual kernel only) More...

#define	cobalt_atomic_leave(__context)
	Leave atomic section (dual kernel only) More...

#define	RTDM_EXECUTE_ATOMICALLY(code_block)
	Execute code block atomically (DEPRECATED) More...

#define	RTDM_LOCK_UNLOCKED(__name) IPIPE_SPIN_LOCK_UNLOCKED
	Static lock initialisation.

#define	rtdm_lock_get_irqsave(__lock, __context) ((__context) = __rtdm_lock_get_irqsave(__lock))
	Acquire lock and disable preemption, by stalling the head domain. More...

#define	rtdm_lock_irqsave(__context) splhigh(__context)
	Disable preemption locally. More...

#define	rtdm_lock_irqrestore(__context) splexit(__context)
	Restore preemption state. More...

#define	rtdm_irq_get_arg(irq_handle, type) ((type *)irq_handle->cookie)
	Retrieve IRQ handler argument. More...

Device Flags
Static flags describing a RTDM device
#define	RTDM_EXCLUSIVE 0x0001
	If set, only a single instance of the device can be requested by an application. More...

#define	RTDM_FIXED_MINOR 0x0002
	Use fixed minor provided in the rtdm_device description for registering. More...

#define	RTDM_NAMED_DEVICE 0x0010
	If set, the device is addressed via a clear-text name. More...

#define	RTDM_PROTOCOL_DEVICE 0x0020
	If set, the device is addressed via a combination of protocol ID and socket type. More...

#define	RTDM_DEVICE_TYPE_MASK 0x00F0
	Mask selecting the device type. More...

#define	RTDM_SECURE_DEVICE 0x80000000
	Flag indicating a secure variant of RTDM (not supported here)

RTDM_IRQTYPE_xxx
Interrupt registrations flags
#define	RTDM_IRQTYPE_SHARED XN_IRQTYPE_SHARED
	Enable IRQ-sharing with other real-time drivers.

#define	RTDM_IRQTYPE_EDGE XN_IRQTYPE_EDGE
	Mark IRQ as edge-triggered, relevant for correct handling of shared edge-triggered IRQs.

RTDM_IRQ_xxx
Return flags of interrupt handlers
#define	RTDM_IRQ_NONE XN_IRQ_NONE
	Unhandled interrupt.

#define	RTDM_IRQ_HANDLED XN_IRQ_HANDLED
	Denote handled interrupt.

#define	RTDM_IRQ_DISABLE XN_IRQ_DISABLE
	Request interrupt disabling on exit.

Task Priority Range
Maximum and minimum task priorities
#define	RTDM_TASK_LOWEST_PRIORITY 0

#define	RTDM_TASK_HIGHEST_PRIORITY 99

Task Priority Modification
Raise or lower task priorities by one level
#define	RTDM_TASK_RAISE_PRIORITY (+1)

#define	RTDM_TASK_LOWER_PRIORITY (-1)

Typedefs
typedef ipipe_spinlock_t	rtdm_lock_t
	Lock variable.

typedef unsigned long	rtdm_lockctx_t
	Variable to save the context while holding a lock.

typedef int(*	rtdm_irq_handler_t) (rtdm_irq_t *irq_handle)
	Interrupt handler. More...

typedef void(*	rtdm_nrtsig_handler_t) (rtdm_nrtsig_t nrt_sig, void arg)
	Non-real-time signal handler. More...

typedef void(*	rtdm_timer_handler_t) (rtdm_timer_t *timer)
	Timer handler. More...

typedef void(*	rtdm_task_proc_t) (void *arg)
	Real-time task procedure. More...

Enumerations
RTDM_SELECTTYPE_xxx
Event types select can bind to
enum	rtdm_selecttype { RTDM_SELECTTYPE_READ = XNSELECT_READ, RTDM_SELECTTYPE_WRITE = XNSELECT_WRITE, RTDM_SELECTTYPE_EXCEPT = XNSELECT_EXCEPT }

RTDM_TIMERMODE_xxx
Timer operation modes
enum	rtdm_timer_mode { RTDM_TIMERMODE_RELATIVE = XN_RELATIVE, RTDM_TIMERMODE_ABSOLUTE = XN_ABSOLUTE, RTDM_TIMERMODE_REALTIME = XN_REALTIME }

Functions
static void *	rtdm_fd_to_private (struct rtdm_fd *fd)
	Locate the driver private area associated to a device context structure. More...

static struct rtdm_fd *	rtdm_private_to_fd (void *dev_private)
	Locate a device file descriptor structure from its driver private area. More...

static bool	rtdm_fd_is_user (struct rtdm_fd *fd)
	Tell whether the passed file descriptor belongs to an application. More...

static struct rtdm_device *	rtdm_fd_device (struct rtdm_fd *fd)
	Locate a device structure from a file descriptor. More...

int	rtdm_dev_register (struct rtdm_device *device)
	Register a RTDM device. More...

void	rtdm_dev_unregister (struct rtdm_device *device)
	Unregister a RTDM device. More...

void	rtdm_toseq_init (rtdm_toseq_t *timeout_seq, nanosecs_rel_t timeout)
	Initialise a timeout sequence. More...

static void	rtdm_lock_init (rtdm_lock_t *lock)
	Dynamic lock initialisation. More...

static void	rtdm_lock_get (rtdm_lock_t *lock)
	Acquire lock from non-preemptible contexts. More...

static void	rtdm_lock_put (rtdm_lock_t *lock)
	Release lock without preemption restoration. More...

static void	rtdm_lock_put_irqrestore (rtdm_lock_t *lock, rtdm_lockctx_t context)
	Release lock and restore preemption state. More...

int	rtdm_irq_request (rtdm_irq_t irq_handle, unsigned int irq_no, rtdm_irq_handler_t handler, unsigned long flags, const char device_name, void *arg)
	Register an interrupt handler. More...

void	rtdm_schedule_nrt_work (struct work_struct *lostage_work)
	Put a work task in Linux non real-time global workqueue from primary mode. More...

void	rtdm_timer_destroy (rtdm_timer_t *timer)
	Destroy a timer. More...

int	rtdm_timer_start (rtdm_timer_t *timer, nanosecs_abs_t expiry, nanosecs_rel_t interval, enum rtdm_timer_mode mode)
	Start a timer. More...

void	rtdm_timer_stop (rtdm_timer_t *timer)
	Stop a timer. More...

int	rtdm_task_init (rtdm_task_t task, const char name, rtdm_task_proc_t task_proc, void *arg, int priority, nanosecs_rel_t period)
	Initialise and start a real-time task. More...

void	rtdm_task_busy_sleep (nanosecs_rel_t delay)
	Busy-wait a specified amount of time. More...

void	rtdm_event_init (rtdm_event_t *event, unsigned long pending)
	Initialise an event. More...

int	rtdm_event_wait (rtdm_event_t *event)
	Wait on event occurrence. More...

int	rtdm_event_timedwait (rtdm_event_t event, nanosecs_rel_t timeout, rtdm_toseq_t timeout_seq)
	Wait on event occurrence with timeout. More...

void	rtdm_event_signal (rtdm_event_t *event)
	Signal an event occurrence. More...

void	rtdm_event_clear (rtdm_event_t *event)
	Clear event state. More...

void	rtdm_event_pulse (rtdm_event_t *event)
	Signal an event occurrence to currently listening waiters. More...

void	rtdm_event_destroy (rtdm_event_t *event)
	Destroy an event. More...

void	rtdm_sem_init (rtdm_sem_t *sem, unsigned long value)
	Initialise a semaphore. More...

int	rtdm_sem_down (rtdm_sem_t *sem)
	Decrement a semaphore. More...

int	rtdm_sem_timeddown (rtdm_sem_t sem, nanosecs_rel_t timeout, rtdm_toseq_t timeout_seq)
	Decrement a semaphore with timeout. More...

void	rtdm_sem_up (rtdm_sem_t *sem)
	Increment a semaphore. More...

void	rtdm_sem_destroy (rtdm_sem_t *sem)
	Destroy a semaphore. More...

void	rtdm_mutex_init (rtdm_mutex_t *mutex)
	Initialise a mutex. More...

int	rtdm_mutex_lock (rtdm_mutex_t *mutex)
	Request a mutex. More...

int	rtdm_mutex_timedlock (rtdm_mutex_t mutex, nanosecs_rel_t timeout, rtdm_toseq_t timeout_seq)
	Request a mutex with timeout. More...

void	rtdm_mutex_unlock (rtdm_mutex_t *mutex)
	Release a mutex. More...

void	rtdm_mutex_destroy (rtdm_mutex_t *mutex)
	Destroy a mutex. More...

int	rtdm_ratelimit (struct rtdm_ratelimit_state rs, const char func)
	Enforces a rate limit. More...

RTDM profile information descriptor
RTDM profile information This descriptor details the profile information associated to a RTDM class of device managed by a driver.
#define	RTDM_CLASS_MAGIC 0x8284636c
	Initializer for class profile information. More...

#define	RTDM_PROFILE_INFO(__name, __id, __subid, __version)
	Initializer for class profile information. More...

int	rtdm_drv_set_sysclass (struct rtdm_driver drv, struct class cls)
	Set the kernel device class of a RTDM driver. More...

Detailed Description

Real-Time Driver Model for Xenomai, driver API header.

Copyright (C) 2005-2007 Jan Kiszka jan.k.nosp@m.iszk.nosp@m.a@web.nosp@m..de Copyright (C) 2005 Joerg Langenberg joerg.nosp@m..lan.nosp@m.genbe.nosp@m.rg@g.nosp@m.mx.ne.nosp@m.t Copyright (C) 2008 Gilles Chanteperdrix gille.nosp@m.s.ch.nosp@m.antep.nosp@m.erdr.nosp@m.ix@xe.nosp@m.noma.nosp@m.i.org Copyright (C) 2014 Philippe Gerum rpm@x.nosp@m.enom.nosp@m.ai.or.nosp@m.g

Xenomai is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

Xenomai is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Xenomai; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.

Macro Definition Documentation

◆ RTDM_CLASS_MAGIC

#define RTDM_CLASS_MAGIC 0x8284636c

Initializer for class profile information.

This macro must be used to fill in the class profile information field from a RTDM driver.

Parameters

__name	Class name (unquoted).
__id	Class major identification number (profile_version.class_id).
__subid	Class minor identification number (profile_version.subclass_id).
__version	Profile version number.

Note: See Device Profiles.

◆ RTDM_PROFILE_INFO

#define RTDM_PROFILE_INFO	(	__name,
		__id,
		__subid,
		__version
	)

Value:

{                                                               \
        .name = ( # __name ),                                   \
        .class_id = (__id),                                     \
        .subclass_id = (__subid),                               \
        .version = (__version),                                 \
        .magic = ~RTDM_CLASS_MAGIC,                             \
        .owner = THIS_MODULE,                                   \
        .kdev_class = NULL,                                     \
}

Initializer for class profile information.

This macro must be used to fill in the class profile information field from a RTDM driver.

Parameters

__name	Class name (unquoted).
__id	Class major identification number (profile_version.class_id).
__subid	Class minor identification number (profile_version.subclass_id).
__version	Profile version number.

Note: See Device Profiles.

Function Documentation

◆ rtdm_fd_device()

static struct rtdm_device* rtdm_fd_device ( struct rtdm_fd * fd )

static

Locate a device structure from a file descriptor.

Parameters

[in] fd File descriptor

Returns: The address of the device structure to which this file descriptor is attached.

Referenced by udd_get_device().

◆ rtdm_fd_is_user()

static bool rtdm_fd_is_user ( struct rtdm_fd * fd )

inlinestatic

Tell whether the passed file descriptor belongs to an application.

Parameters

[in] fd File descriptor

Returns: true if passed file descriptor belongs to an application, false otherwise.

◆ rtdm_fd_to_private()

static void* rtdm_fd_to_private ( struct rtdm_fd * fd )

inlinestatic

Locate the driver private area associated to a device context structure.

Parameters

[in] fd File descriptor structure associated with opened device instance

Returns: The address of the private driver area associated to file descriptor.

◆ rtdm_private_to_fd()

static struct rtdm_fd* rtdm_private_to_fd ( void * dev_private )

static

Locate a device file descriptor structure from its driver private area.

Parameters

[in] dev_private Address of a private context area

Returns: The address of the file descriptor structure defining dev_private.

Data Structures

Macros

Typedefs

Enumerations

Functions

RTDM profile information descriptor

Detailed Description

Macro Definition Documentation

◆ RTDM_CLASS_MAGIC

◆ RTDM_PROFILE_INFO

Function Documentation

◆ rtdm_fd_device()

◆ rtdm_fd_is_user()

◆ rtdm_fd_to_private()

◆ rtdm_private_to_fd()
