Xenomai  3.0.5
testing.h File Reference

Real-Time Driver Model for Xenomai, testing device profile header. More...

Include dependency graph for testing.h:

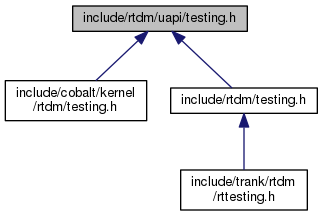

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

Sub-Classes of RTDM_CLASS_TESTING
#define RTDM_SUBCLASS_TIMERBENCH   0
 subclass name: "timerbench"

#define RTDM_SUBCLASS_IRQBENCH   1
 subclass name: "irqbench"

#define RTDM_SUBCLASS_SWITCHTEST   2
 subclass name: "switchtest"

#define RTDM_SUBCLASS_RTDMTEST   3
 subclase name: "rtdm"

IOCTLs

Testing device IOCTLs

#define RTTST_RTIOC_INTERM_BENCH_RES   _IOWR(RTIOC_TYPE_TESTING, 0x00, struct rttst_interm_bench_res)

#define RTTST_RTIOC_TMBENCH_START   _IOW(RTIOC_TYPE_TESTING, 0x10, struct rttst_tmbench_config)

#define RTTST_RTIOC_TMBENCH_STOP   _IOWR(RTIOC_TYPE_TESTING, 0x11, struct rttst_overall_bench_res)

#define RTTST_RTIOC_SWTEST_SET_TASKS_COUNT   _IOW(RTIOC_TYPE_TESTING, 0x30, __u32)

#define RTTST_RTIOC_SWTEST_SET_CPU   _IOW(RTIOC_TYPE_TESTING, 0x31, __u32)

#define RTTST_RTIOC_SWTEST_REGISTER_UTASK   _IOW(RTIOC_TYPE_TESTING, 0x32, struct rttst_swtest_task)

#define RTTST_RTIOC_SWTEST_CREATE_KTASK   _IOWR(RTIOC_TYPE_TESTING, 0x33, struct rttst_swtest_task)

#define RTTST_RTIOC_SWTEST_PEND   _IOR(RTIOC_TYPE_TESTING, 0x34, struct rttst_swtest_task)

#define RTTST_RTIOC_SWTEST_SWITCH_TO   _IOR(RTIOC_TYPE_TESTING, 0x35, struct rttst_swtest_dir)

#define RTTST_RTIOC_SWTEST_GET_SWITCHES_COUNT   _IOR(RTIOC_TYPE_TESTING, 0x36, __u32)

#define RTTST_RTIOC_SWTEST_GET_LAST_ERROR   _IOR(RTIOC_TYPE_TESTING, 0x37, struct rttst_swtest_error)

#define RTTST_RTIOC_SWTEST_SET_PAUSE   _IOW(RTIOC_TYPE_TESTING, 0x38, __u32)

#define RTTST_RTIOC_RTDM_DEFER_CLOSE   _IOW(RTIOC_TYPE_TESTING, 0x40, __u32)

#define RTTST_RTIOC_RTDM_ACTOR_GET_CPU   _IOR(RTIOC_TYPE_TESTING, 0x41, __u32)

#define RTTST_RTIOC_RTDM_PING_PRIMARY   _IOR(RTIOC_TYPE_TESTING, 0x42, __u32)

#define RTTST_RTIOC_RTDM_PING_SECONDARY   _IOR(RTIOC_TYPE_TESTING, 0x43, __u32)


Detailed Description

Real-Time Driver Model for Xenomai, testing device profile header.

Note
Copyright (C) 2005 Jan Kiszka jan.k.nosp@m.iszk.nosp@m.a@web.nosp@m..de

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA.
