Device Profiles
RTDM

Pre-defined classes of real-time devices. More...

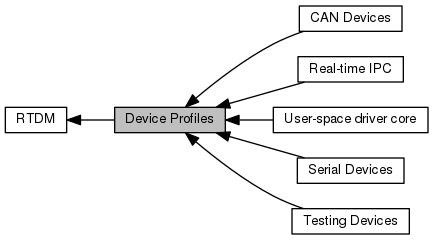

Collaboration diagram for Device Profiles:

Modules

 User-space driver core
 This profile includes all mini-drivers sitting on top of the User-space Device Driver framework (UDD).

 CAN Devices
 This is the common interface a RTDM-compliant CAN device has to provide.

 Serial Devices
 This is the common interface a RTDM-compliant serial device has to provide.

 Testing Devices
 This group of devices is intended to provide in-kernel testing results.

 Real-time IPC
 Profile Revision: 1




Data Structures

struct  rtdm_device_info
 Device information. More...


Typedefs

typedef struct rtdm_device_info rtdm_device_info_t
 Device information.


RTDM_CLASS_xxx

Device classes

#define RTDM_CLASS_PARPORT   1

#define RTDM_CLASS_SERIAL   2

#define RTDM_CLASS_CAN   3

#define RTDM_CLASS_NETWORK   4

#define RTDM_CLASS_RTMAC   5

#define RTDM_CLASS_TESTING   6

#define RTDM_CLASS_RTIPC   7

#define RTDM_CLASS_COBALT   8

#define RTDM_CLASS_UDD   9

#define RTDM_CLASS_MEMORY   10

#define RTDM_CLASS_GPIO   11

#define RTDM_CLASS_SPI   12

#define RTDM_CLASS_MISC   223

#define RTDM_CLASS_EXPERIMENTAL   224

#define RTDM_CLASS_MAX   255


Device Naming

Maximum length of device names (excluding the final null character)

#define RTDM_MAX_DEVNAME_LEN   31


RTDM_PURGE_xxx_BUFFER

Flags selecting buffers to be purged

#define RTDM_PURGE_RX_BUFFER   0x0001

#define RTDM_PURGE_TX_BUFFER   0x0002


Common IOCTLs

The following IOCTLs are common to all device rtdm_profiles.

#define RTIOC_DEVICE_INFO   _IOR(RTIOC_TYPE_COMMON, 0x00, struct rtdm_device_info)
 Retrieve information about a device or socket. More...

#define RTIOC_PURGE   _IOW(RTIOC_TYPE_COMMON, 0x10, int)
 Purge internal device or socket buffers. More...


Detailed Description

Pre-defined classes of real-time devices.

Device profiles define which operation handlers a driver of a certain class of devices has to implement, which name or protocol it has to register, which IOCTLs it has to provide, and further details. Sub-classes can be defined in order to extend a device profile with more hardware-specific functions.

Macro Definition Documentation

◆ RTIOC_DEVICE_INFO

#define RTIOC_DEVICE_INFO   _IOR(RTIOC_TYPE_COMMON, 0x00, struct rtdm_device_info)

Retrieve information about a device or socket.

Parameters
[out]argPointer to information buffer (struct rtdm_device_info)

◆ RTIOC_PURGE

#define RTIOC_PURGE   _IOW(RTIOC_TYPE_COMMON, 0x10, int)

Purge internal device or socket buffers.

Parameters
[in]argPurge mask, see RTDM_PURGE_xxx_BUFFER
