Device Profiles
[Real-Time Driver Model]

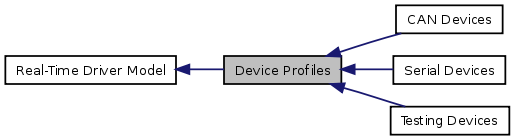

Collaboration diagram for Device Profiles:

---

Detailed Description

Device profiles define which operation handlers a driver of a certain class has to implement, which name or protocol it has to register, which IOCTLs it has to provide, and further details. Sub-classes can be defined in order to extend a device profile with more hardware-specific functions.

Modules
	CAN Devices
	Serial Devices
	Testing Devices
Data Structures
struct	rtdm_device_info_t
	Device information. More...
RTDM_CLASS_xxx
Device classes
#define	RTDM_CLASS_PARPORT   1
#define	RTDM_CLASS_SERIAL   2
#define	RTDM_CLASS_CAN   3
#define	RTDM_CLASS_NETWORK   4
#define	RTDM_CLASS_RTMAC   5
#define	RTDM_CLASS_TESTING   6
#define	RTDM_CLASS_EXPERIMENTAL   224
#define	RTDM_CLASS_MAX   255
Device Naming
Maximum length of device names (excluding the final null character)
#define	RTDM_MAX_DEVNAME_LEN   31
RTDM_PURGE_xxx_BUFFER
Flags selecting buffers to be purged
#define	RTDM_PURGE_RX_BUFFER   0x0001
#define	RTDM_PURGE_TX_BUFFER   0x0002
Common IOCTLs
The following IOCTLs are common to all device profiles.
#define	RTIOC_DEVICE_INFO   _IOR(RTIOC_TYPE_COMMON, 0x00, struct rtdm_device_info)
	Retrieve information about a device or socket.
#define	RTIOC_PURGE   _IOW(RTIOC_TYPE_COMMON, 0x10, int)
	Purge internal device or socket buffers.

---

Define Documentation

#define RTIOC_DEVICE_INFO   _IOR(RTIOC_TYPE_COMMON, 0x00, struct rtdm_device_info)

Retrieve information about a device or socket.

Parameters:

[out]

arg

Pointer to information buffer (struct rtdm_device_info)

#define RTIOC_PURGE   _IOW(RTIOC_TYPE_COMMON, 0x10, int)

Purge internal device or socket buffers.

Parameters:

[in]

arg

Purge mask, see RTDM_PURGE_xxx_BUFFER

---
